SheetCode · AutoCAD & Civil 3D 2021-2026 · Beta

A whole project's sheet set, laid out in minutes.

SheetCode lays out your whole sheet set in AutoCAD and Civil 3D: zero-gap, correctly oriented viewports along any site boundary or road centerline, with the match lines placed for you. The most tedious afternoon in plan production, done in minutes.

Download the free beta Buy a license

Free 30-day beta: install it, then open AutoCAD or Civil 3D. SheetCode opens on its own and asks for your email to start. No key, no credit card.

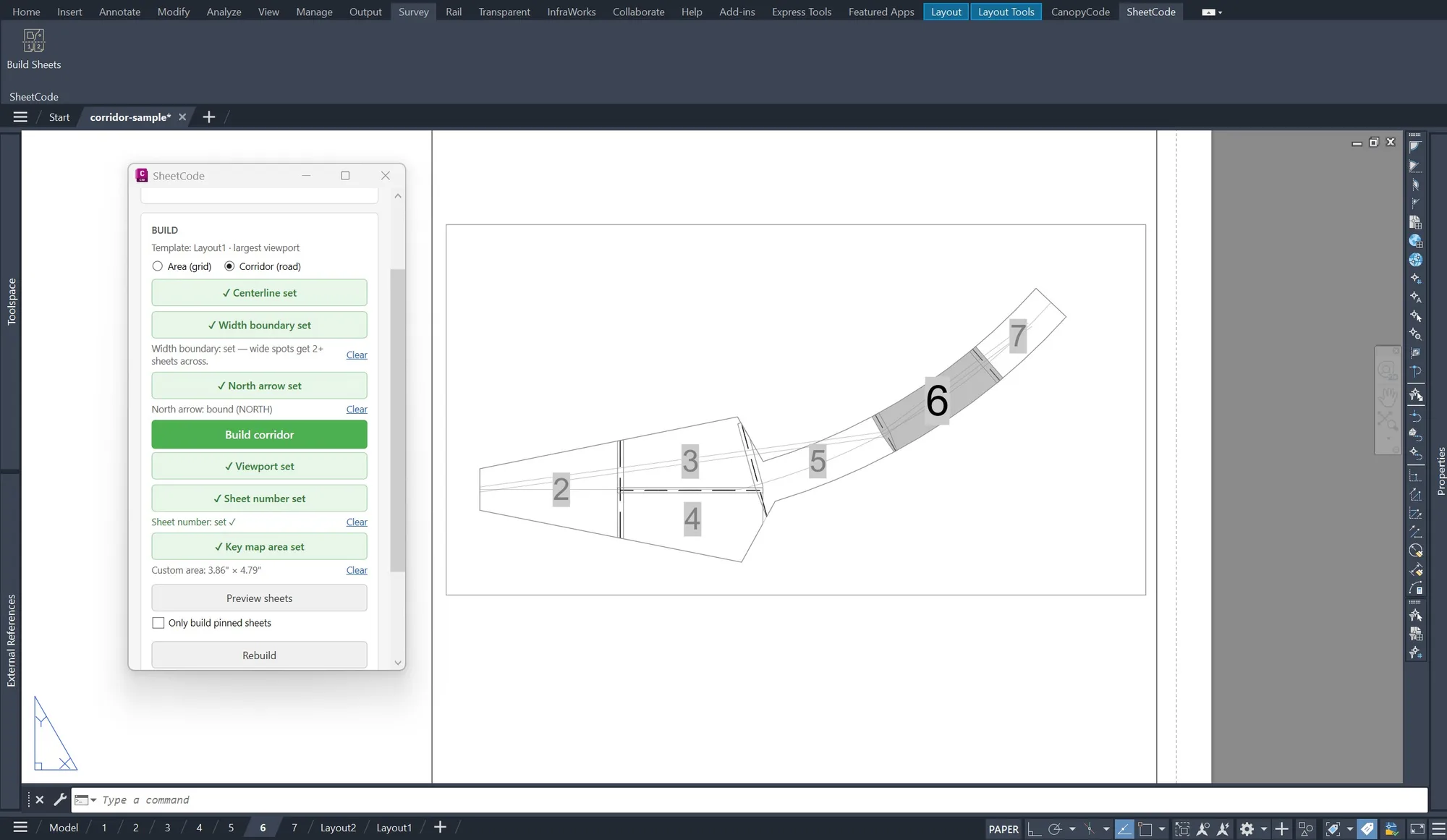

A SheetCode corridor layout in Civil 3D: numbered, zero-gap viewports following a curving road centerline, with match lines placed automatically
A corridor sheeted end to end: numbered, zero-gap viewports along the centerline.

Area mode: sites

Sheet any site boundary into zero-gap, correctly oriented viewports that cover the whole parcel.

Corridor mode: roads

Follow a road centerline and lay out sheets along the corridor, oriented to the alignment.

In action

The panel that lays out the set

The Build panel A hands-on replica of the plugin's Build panel. Click each pick to set it, then switch between Area and Corridor mode to see the controls SheetCode uses for each. It's a preview, it won't draw anything.

SheetCode

SETUP

Template layout

✓ Template: Layout1

Sets scale, size & rotation, read from this layout. Activate another tab, then click to change.

Rotation: 0°

▸ Sheet, scale & offset

BUILD

Template: Layout1 · largest viewport

✓ Viewport set

Sheet number: not set

No area picked, using default position.

Save current as my defaults

▸ Advanced

License: active Send feedback

What it does

The sheet set, laid out for you

Everything SheetCode handles, so plan production stops eating your afternoon.

  • Zero-gap viewport coverage: nothing falls between sheets
  • Viewports oriented to the boundary or alignment
  • Match-line placement automated for you
  • Runs inside AutoCAD and Civil 3D (2021-2026) with your existing templates
  • Free 30-day beta, then $99 / year with a 30-day refund

Why it's different

Placing sheets by hand vs. SheetCode

The tedious part of plan production, done in seconds.

The old way: lay out every sheet by hand
With SheetCode
Place each viewport manually and nudge it to cover the parcel.
Zero-gap viewports laid out across the whole site or corridor.
Re-orient every viewport to the boundary or alignment yourself.
Every viewport oriented to the boundary or alignment automatically.
Draw and adjust match-lines one at a time.
Match-lines placed for you.
Hunt for the gaps where the coverage does not quite meet.
Nothing falls between sheets.

Buy a license

Using the free beta? Keep it free for 30 days, then a license is $99 a year with a 30-day money-back guarantee. One license lays out every sheet set inside AutoCAD and Civil 3D (2021 to 2026).

Buy SheetCode
